2021 · Northeastern Electric Racing
300VDC AC/DC EV Charger
High-voltage charging system for a championship-winning Formula Hybrid EV.
- Electrical Project Lead
- Power Electronics, 300VDC, CAN Bus, BMS Integration, High-Voltage Safety
- charge voltage
- 300VDC
- place EV, Formula Hybrid 2021
- 1st
Led electrical and mechanical development of the team's 300VDC charging system from concept through manufacturing — part of the package that took 1st Place Electric Vehicle at the IEEE Formula Hybrid+Electric 2021 competition.
What it involved

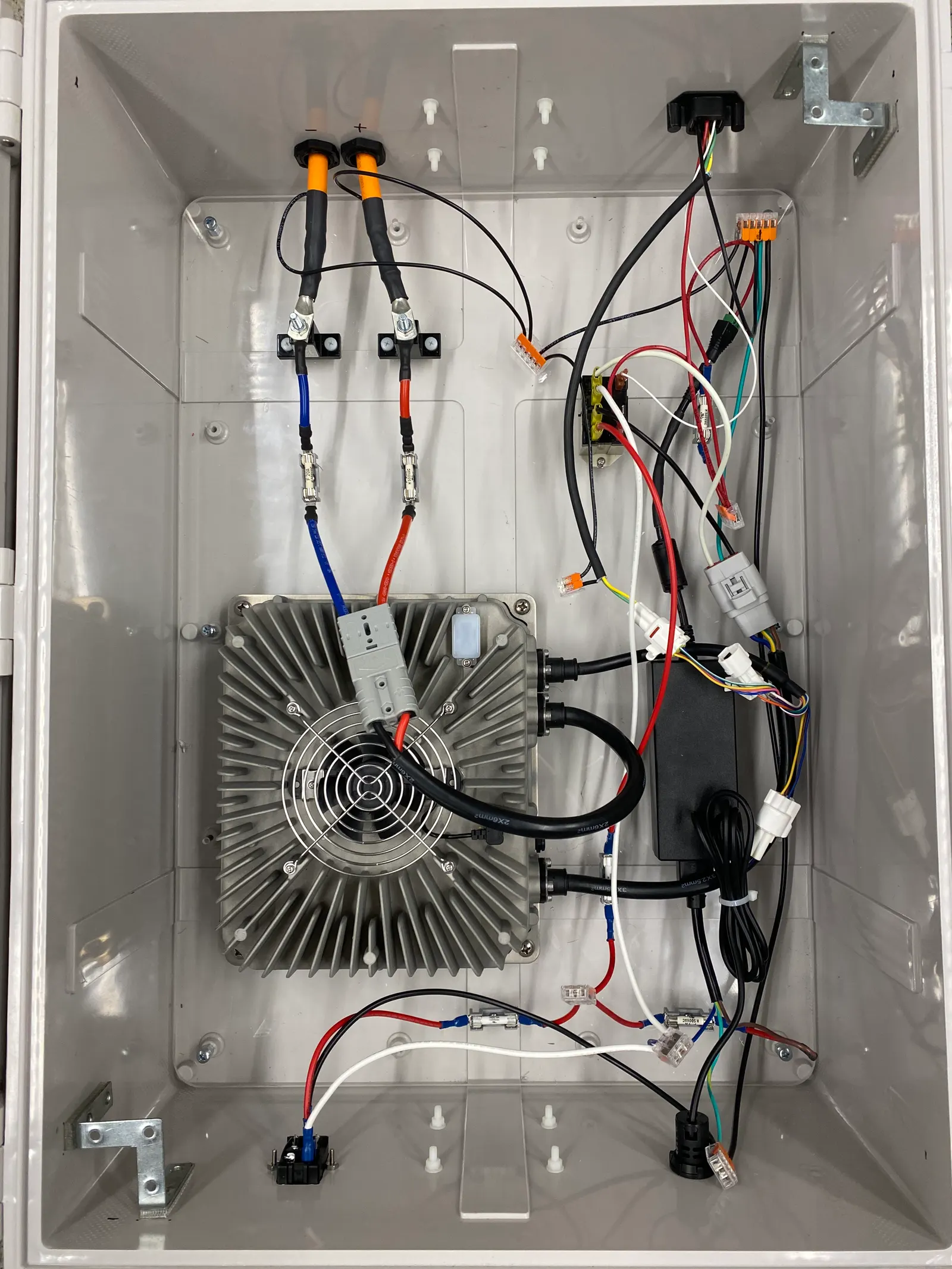

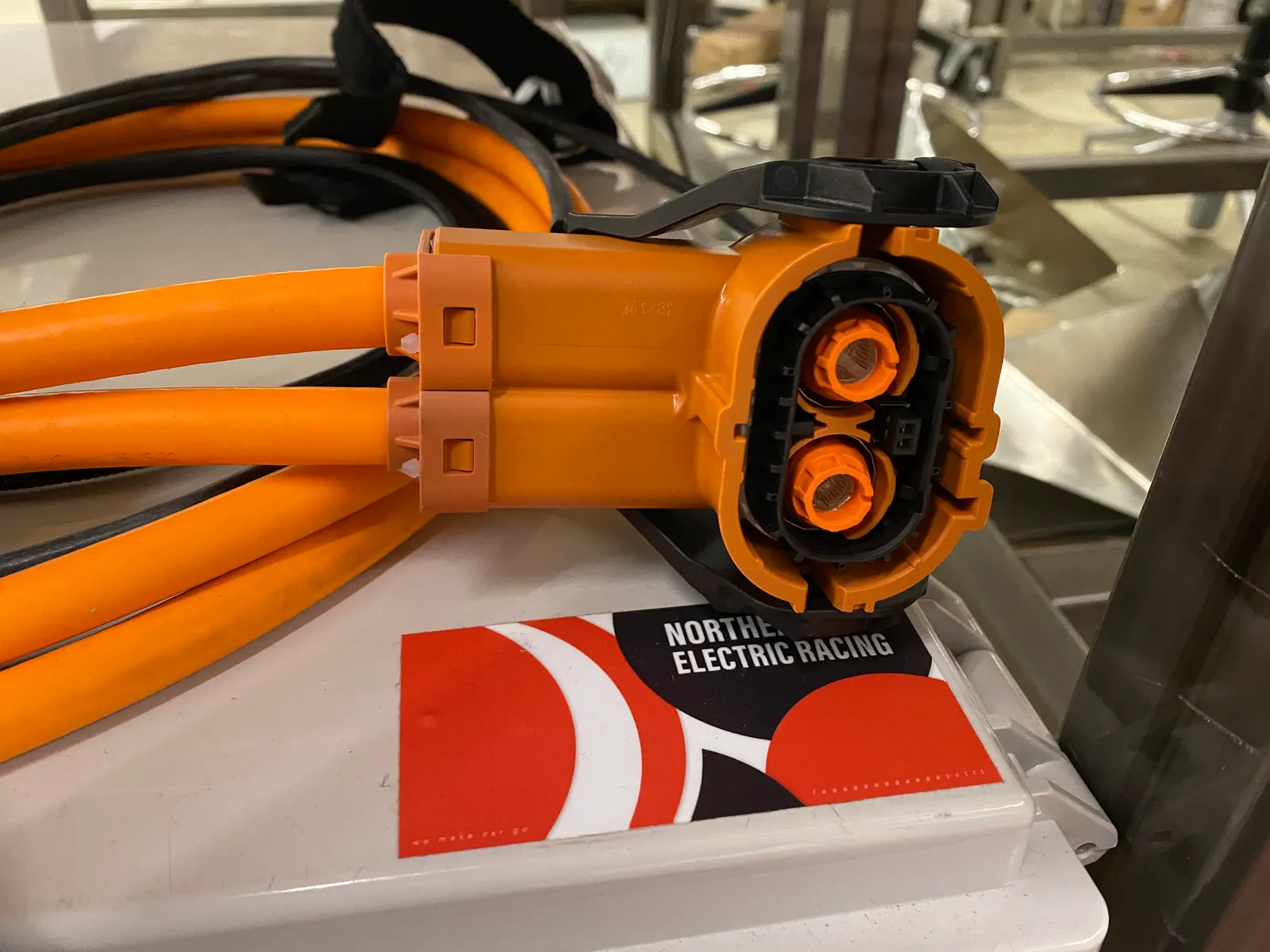

The design integrates a TSM 2500 CAN-enabled charger with the vehicle's Battery Management System, with charger schematics folded into the vehicle's master electrical architecture. The work spanned high-voltage safety design, enclosure and connector engineering, and rules compliance for competition scrutineering.
